Foxeer Reaper 3W 80CH VTx Video Transmitter 4.9~6G High Power Remote Control Built-in Mic for RC Drones Kits Security Protection

Product Categories
Padi Fly Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

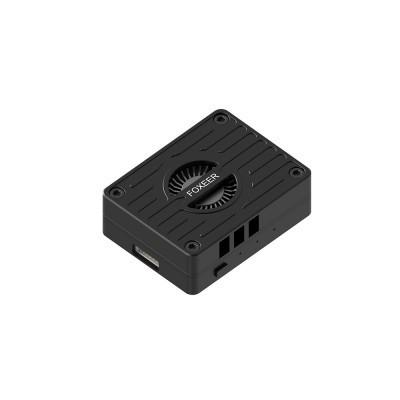

Foxeer Reaper 3W 80CH VTx Video Transmitter 4.9~6G High Power Remote Control Built-in Mic for RC Drones Kits Security Protection

Application : public places

feature : Durable, Remote Control

Place of Origin : China

Brand Name : Foxeer

Product name : Foxeer 4.9~6G Reaper Extreme 3W 80CH

Size : 38*29.2*11.5/cm

Price : CN¥421.44/pieces 1-99 pieces

Contact Now

Foxeer Reaper 3W 80CH VTx Video Transmitter 4.9~6G High Power Remote Control Built-in Mic for RC Drones Kits Security Protection
Name
Reaper 3W V2
Input Voltage
9~36V
Output Voltage
5V
Channels
80CH
Power
25mW/200mW/500mW/1.5W/3W
Pit
Double click to enter
Fan
Yes
Weight
15.2g
Size
38*29.2*11.5mm
Consumption
1.4A/10V
Package Includes
1 x VTx; 1 x silicon cable;
Band
CH1
CH2
CH3
CH4
CH5
CH6
CH7
CH8
Band A
5865
5845
5825
5805
5785
5765
5745
5725
Band B
5733
5752
5771
5790
5809
5828
5847
5866
Band E
5705
5685
5665
5645
5885
5905
5925
5945
Band F
5740
5760
5780
5800
5820
5840
5860
5880
Band R
5658
5695
5732
5769
5806
5843
5880
5917
Band H
5653
5693
5733
5773
5813
5853
5893
5933
Band L
5333
5373
5413
5453
5493
5533
5573
5613
Band U
5325
5348
5366
5384
5402
5420
5438
5456
Band O
5474
5492
5510
5528
5546
5564
5582
5600
Band X
4990
5020
5050
5080
5110
5140
5170
5200
the frequencies and power levels
Long press the "KEY" button until the Red LED (PWR) is constant on, , then on again, release the button the all
frequencies and power levels, flashed Red LED means in ed status, constant Red LED means in locked status.
PIT Mode On/
Double-click the "KEY" button to turn on/ the PIT Mode. Red LED (PWR) means PIT mode on; Red LED (PWR) on means PIT mode
.In PIT mode, VTx outpout low power.
Note:
If tramp cable is connected, button will not work, can not adjust frequency and power, controller will take over.
BetaFlight only can accept 64 channels at most, so the O band is removed from the frequency table default.
Foxeer Reaper 3W 80CH VTx Video Transmitter 4.9~6G High Power Remote Control Built-in Mic for RC Drones Kits Security Protection
3W High Power
Build-in Mic
Foxeer Reaper 3W 80CH VTx Video Transmitter 4.9~6G High Power Remote Control Built-in Mic for RC Drones Kits Security Protection
Heat Dissipation Shll
Great filtering circuit, Strong Anti-interference Ability
Foxeer Reaper 3W 80CH VTx Video Transmitter 4.9~6G High Power Remote Control Built-in Mic for RC Drones Kits Security Protection
